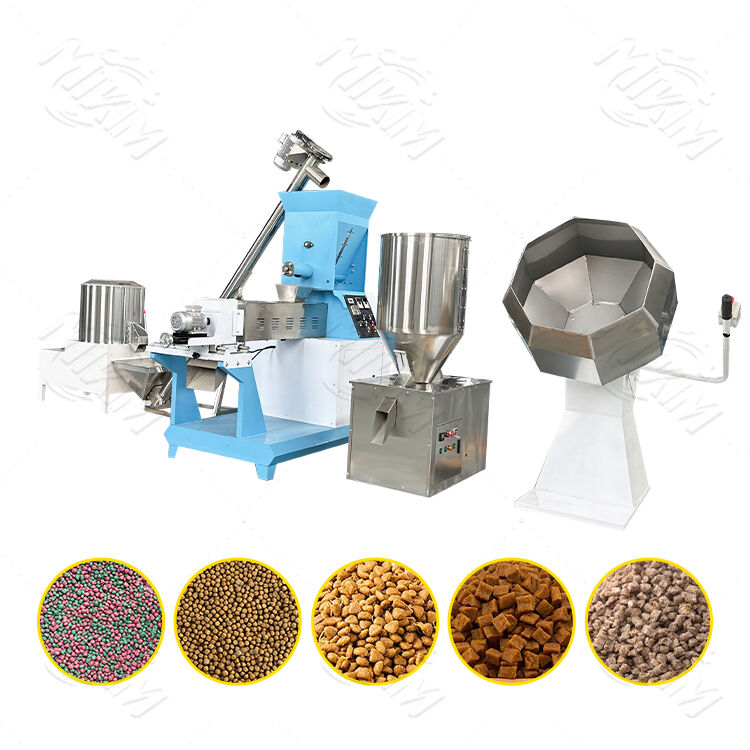

Highly efficient Dry Floating Fish Feed Pellet Processing Line 200kg/H-6000kg/H Animal Pet Cat Dog Food Making Extruder Machine
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | MIKIM |
| Сертификация: | CE |
| Номер модели: | ДГП100, ДГП120, ДГП135, ДГП160, ДГП200 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект |
|---|---|
| Цена: | $10500.00 - 55000.00/ Set |
| Упаковывая детали: | упакованный деревянными пакетом или загрузкой экспорта контейнером |
| Время доставки: | 7-10 рабочих дней |
| Условия оплаты: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
| Поставка способности: | 300 комплектов в месяц |
|
Подробная информация |
|||
| Энергия: | Электричество | Сырье: | Кукурузный/рисовый порошок, пшеничная мука и т.д. |
|---|---|---|---|
| Тип вывода: | Сухой корм для домашних животных, подушечки, гранулы | Тип сырья: | Мясо, крупы, овощи, витамины |
| Преимущество: | Высокая эффективность, низкая стоимость | Электроснабжение: | 380V/50HZ или на заказ |
| Выделить: | dry floating fish feed pellet machine,pet food extruder machine 200kg/h,dog food making machine with warranty |
||
Характер продукции
Highly efficient Dry Floating Fish Feed Pellet Processing Line 200kg/H-6000kg/H Animal Pet Cat Dog Food Making Extruder Machine
Dog Food Processing Line
Dog food extruder can produce all kinds of pet food, including dog, cat, fox, bird and so on. Dog food extruder uses twin screw extruder, the whole work flow can be controlled exactly by parameter. Different raw material and nutrient elements can be added together according to advanced formula, so the final products are tasty and easy to digest.
- Water content is below 12%
- Digestibility can reach 70%
- Nutrition is comprehensive and balanced
- Easy to carry, long shelf life
Raw Material for Dog Food Making Machine
Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste etc. Or using the corn feeds, rice feeds, wheat feeds directly, then grinding. Other nutrient can be added together.
Product Sample
Product Parameters
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor(kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter(mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size(m) | 2 * 2.8 * 1.2 | 2.2 * 2.9 * 1.2 | 2.2 * 3.1 * 1.37 | 2.3 * 3.15 * 1.38 | 2.35 * 3.45 * 1.65 |
| Weight(kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
Product Details
Main Accessories
| Accessory | Function |
|---|---|
| Anti-blocking feeder | Makes sure the even feeding and stable discharge of materials. |
| Double shaft preconditioner | Enables the materials stay longer in the preconditioner and evenness in pre conditioning, improves the precure degree and increases the capacity. |
| Gearbox | Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction. |
| Lubrication and cooling system | Adopts refined filtration forced cooling, creating best working conditions for the bearings. |
| The feeding system | Adopts double spiral forced feeding, feeding uniformly and widely. |
| The screw | Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function. |
| The rotary cutting device | Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly. |
Our Services
- Reasonable solution and assist to select the equipment according to the clients specific requirement.
- Professional consultation of market, machinery, technical, raw material, package for you.
- Layout drawing based on your factory.
- Assist visitors make hotel reservation to enjoy the hotel agreement price.
- Feedback of order production progress and loading.
- Shipping logistics consulting service (by sea, air, land, express).

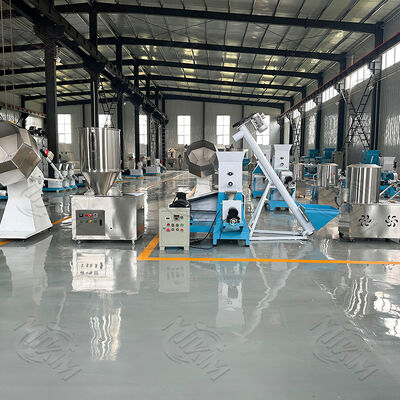

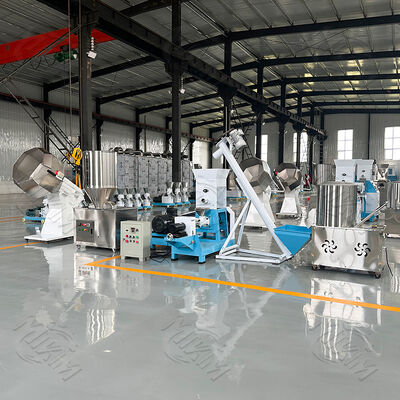

Customer Visits
Qualifications and Awards
Хотите узнать больше подробностей об этом продукте
